Screw cold heading machine
Half protection machine size: 2.1m×1.05m×1.1m Weight: 2000 KGS

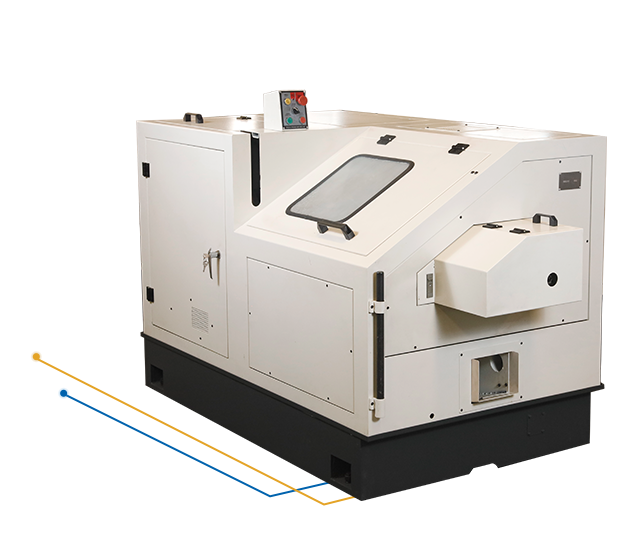

Full protection machine size: 2.3m×1.15m×1.4m Weight: 2400 KGS
| JYX15-37G | |
|---|---|
| Max.blank diameter: | 2.3 mm- 5mm |
| Max.blank length: | 40 mm |
| RPM: | 220 pcs/min |
| Main die diameter: | 34.5 mm×55 mm |
| 1st punch die: | 31 mm×73 mm |
| 2nd punch die: | 31 mm×73 mm |
| Cut-off die: | 19 mm×35 mm |
| Cutter: | 10 mm×32 mm×63 mm |
| Main motor power: | 3 KW(4HP) |
| Oil pump motor power: | 0.33 KW(1/4HP) |
Offer two kinds of protection.
Half protection(left) and Full protection(right)
 |
 |
|
---Vertical sliding plate,widen and thicken, bigger size. Entirety quench. Slide stabilization.
---Sliding block, cast alloy steel.
---Mould pedestal, high processing accuracy. |
|
 |
---Pull rod,spring pedestal,straight line pedestal, knife rest pedestal, precision cast steel
---Install sliding block baseplate,shock absorption,antiwear, lengthen using life. |
|
---Curve sliding plate, entirety, without insert.
---Crankshaft,high strength and toughness, Antiwear alloy steel,widen and thicken. |
|
|
|
---Lifting transmission plate,cutting by laser cutting machine. Impact toughness well, high strength.
---Second axle cam, control the accuracy 3%-5% millimeter. |
|
---Oil line reasonable layout, lubricate all parts.
---Auto stop without lubricating oil.
---Taiwan Electrical motor.
---Main electric circuit：Schneider. |
|
